Copper conductor cable is widely used in industrial power distribution, electrical equipment connection, substations, buildings, infrastructure systems and utility projects. For project buyers, contractors and electrical engineers, choosing the right copper conductor cable is important for stable current transmission, installation safety and long-term electrical performance.
Compared with aluminum conductor cable, copper conductor cable offers higher electrical conductivity, compact cable size and reliable performance in demanding power systems. However, the final cable selection should still be based on voltage rating, conductor size, insulation material, armor requirement, sheath material, installation environment and project standards.
What Is Copper Conductor Cable?

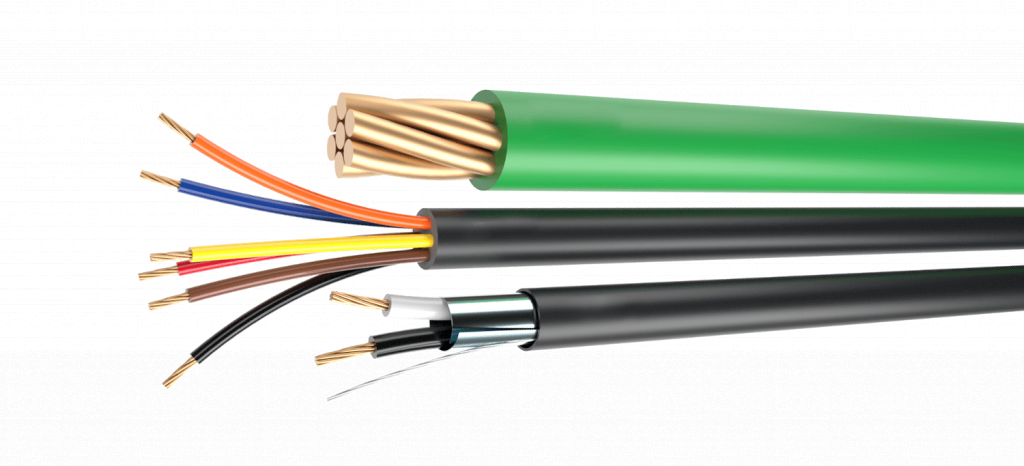

Copper conductor cable is a power cable that uses copper as the conductive material. The copper conductor carries electrical current, while the insulation, sheath and optional armor layers protect the cable and support safe operation in different environments.
Copper is widely used in electrical cable systems because it has excellent conductivity, stable performance and good mechanical properties. This makes copper conductor cables suitable for applications where power loss, cable size and long-term reliability are important.
Depending on project requirements, copper conductor cable can be designed as low voltage cable, medium voltage cable, XLPE insulated power cable, PVC insulated power cable, armored cable or customized power cable.
Common Applications of Copper Conductor Cable
Copper conductor cables are used in many industrial and infrastructure applications. They are especially suitable for projects that require reliable power transmission, compact installation and stable electrical performance.
- Industrial power distribution systems
- Substation and transformer connection
- Electrical equipment connection
- Building electrical systems
- Distribution cabinets and switchgear
- Underground power cable routes
- Renewable energy projects
- Railway and metro power systems
- Oil and petrochemical facilities
- Data centers and telecommunications infrastructure
For industrial applications, copper conductor cable is often selected when the project requires strong conductivity, stable current-carrying capacity and reliable performance under continuous operation.
Key Specifications Buyers Should Confirm
Before ordering copper conductor cable, buyers should confirm all key specifications. Complete technical information helps the supplier recommend a suitable cable structure and provide an accurate quotation.
| Specification Item | What to Confirm | Why It Matters |
|---|---|---|
| Voltage Rating | Low voltage, medium voltage or project-specific rating | Determines insulation system and cable structure |
| Conductor Material | Copper conductor | Provides high conductivity and stable electrical performance |
| Conductor Size | Required cross-sectional area | Determines current-carrying capacity |
| Core Structure | Single-core, three-core or multi-core | Affects installation method and system design |
| Insulation Material | XLPE, PVC or project-specified material | Affects electrical performance and application suitability |
| Armor Requirement | Armored or non-armored | Provides mechanical protection when needed |
| Outer Sheath | PVC, PE, LSZH or project-specific sheath | Protects the cable from environmental conditions |
| Standard | IEC, GB/T or project-specific requirement | Ensures compliance with procurement specifications |
Why Choose Copper Conductor?
Copper conductor is commonly selected because of its high electrical conductivity. This means that copper can carry current efficiently and may allow a more compact cable design compared with some alternative conductor materials.
For applications where cable space is limited or where reliable current transmission is important, copper conductor cable can be a strong option. It is widely used in industrial plants, electrical rooms, substations, power distribution cabinets and demanding infrastructure projects.
Main advantages include:
- High electrical conductivity
- Compact cable size for many applications
- Stable long-term electrical performance
- Good mechanical properties
- Suitable for demanding industrial electrical systems
- Reliable option for power distribution and equipment connection
Copper Conductor Cable vs Aluminum Conductor Cable
Copper and aluminum are both widely used as conductor materials, but they are suitable for different project conditions. Copper conductor cable is often preferred where high conductivity, compact size and stable performance are required. Aluminum conductor cable is lighter and may be more cost-effective for some large-scale power distribution projects.
| Factor | Copper Conductor Cable | Aluminum Conductor Cable |
|---|---|---|
| Conductivity | Higher conductivity | Lower than copper but suitable for many power systems |
| Cable Size | Can be more compact for the same current requirement | May require larger size for similar current capacity |
| Weight | Heavier | Lighter |
| Cost | Usually higher | Usually more cost-effective |
| Typical Use | Industrial systems, substations, electrical equipment, compact installation | Large-scale distribution, infrastructure and long cable routes |
The right choice depends on current load, cable route length, installation space, project budget and required standards. Buyers should compare copper and aluminum conductor options based on the same technical requirements, not only by unit price.
Low Voltage or Medium Voltage Copper Cable?
Copper conductor cable can be used in both low voltage and medium voltage systems. Low voltage copper cables are commonly used for building electrical systems, distribution cabinets, equipment connection and general industrial power supply.
Medium voltage copper conductor cables are often used in substations, industrial plants, infrastructure systems, renewable energy projects and utility distribution networks. For medium voltage applications, XLPE insulated power cable is commonly selected because of its electrical insulation performance and thermal stability.
Before requesting a quotation, buyers should confirm the voltage rating clearly. Common medium voltage ratings may include 6/10kV, 8.7/15kV, 12/20kV, 18/30kV and 26/35kV depending on project specifications.
XLPE or PVC Insulation for Copper Conductor Cable?
Insulation material should be selected according to voltage rating, operating environment and project requirements. XLPE insulation is widely used for medium voltage copper conductor cable because it provides strong electrical insulation performance and thermal stability.
PVC insulation is commonly used for low voltage copper power cables, building electrical systems, equipment connection and general industrial applications. It offers practical performance and cost efficiency for standard electrical projects.
| Insulation Material | Main Features | Typical Use |
|---|---|---|
| XLPE | Strong electrical performance and thermal stability | Medium voltage distribution, substations, industrial power systems |
| PVC | Practical and cost-effective for general applications | Low voltage distribution, buildings, equipment connection |
Single-Core or Three-Core Copper Cable?
Copper conductor cable can be designed as single-core, three-core or multi-core cable depending on the electrical system. Single-core copper cables are often used in medium voltage and high current applications where each phase is installed separately.
Three-core copper cables integrate three insulated conductors into one cable structure. They can simplify routing and provide compact installation in some industrial and underground power distribution projects.
The correct core structure should follow the project’s electrical design, current load, installation space and applicable standards.
Armored or Non-Armored Copper Conductor Cable?
Armor provides mechanical protection for power cables. Copper conductor cable can be designed as armored or non-armored depending on installation environment.
Armored copper conductor cable is commonly used for underground installation, direct burial, cable trenches, industrial plants and infrastructure projects where mechanical damage may occur. Non-armored copper cable may be suitable for protected indoor installation, ducts, conduits or cable trays.
- Choose armored cable for underground or mechanically demanding environments
- Choose non-armored cable for protected indoor, duct or tray installation
- Confirm steel tape armor or steel wire armor according to project requirements
- Review outer sheath material together with armor selection
Outer Sheath Selection
The outer sheath protects the cable from moisture, abrasion, sunlight, chemicals and installation stress. Common sheath materials include PVC, PE and LSZH.
PVC sheath is widely used for standard industrial and electrical applications. PE sheath may be suitable for outdoor, underground or moisture-related environments. LSZH sheath may be required for tunnels, public infrastructure, enclosed spaces or projects with low smoke and halogen-free requirements.
Buyers should describe the installation environment clearly so the supplier can recommend a suitable sheath material.
Flexible Copper Stranded Conductor vs Copper Power Cable
Flexible copper stranded conductor and copper conductor power cable are related but not the same. Flexible copper stranded conductor is often used for grounding, equipment connection, switchgear, control cabinets and customized conductor applications. Copper conductor power cable is a complete cable structure used for power transmission and distribution.
| Product Type | Main Structure | Typical Application |
|---|---|---|
| Flexible Copper Stranded Conductor | Multiple copper strands, usually focused on conductor flexibility | Grounding, equipment connection, flexible electrical connection |
| Copper Conductor Cable | Copper conductor with insulation, sheath and optional armor | Power distribution, industrial systems, buildings, substations |
Buyers should confirm whether they need a conductor product or a complete power cable before requesting a quotation.
How to Choose Copper Conductor Cable for Industrial Projects
Choosing the right copper conductor cable requires reviewing both electrical requirements and installation conditions. Buyers should not select only by material name or price.
Important selection factors include:
- Voltage rating
- Current-carrying capacity
- Conductor size
- Single-core, three-core or multi-core structure
- XLPE or PVC insulation
- Armored or non-armored requirement
- Outer sheath material
- Installation method
- Indoor, outdoor or underground environment
- Fire safety requirement
- Applicable standards
- Quantity and delivery schedule
Common Procurement Mistakes to Avoid
Some copper conductor cable procurement problems happen because buyers provide incomplete specifications or compare quotations based on different cable structures.
- Only asking for copper cable price without specifications
- Not confirming voltage rating
- Not providing conductor size
- Ignoring single-core or three-core structure
- Choosing non-armored cable for underground installation without protection
- Not confirming insulation and sheath materials
- Missing required standards or documentation
- Comparing copper and aluminum cable quotations without checking equivalent capacity
Information Needed for a Copper Cable Quotation
To receive an accurate quotation, buyers should prepare complete technical information before contacting a supplier.
- Cable type
- Voltage rating
- Conductor material: copper
- Conductor size or cross-sectional area
- Number of cores
- Insulation material
- Armor requirement and armor type
- Outer sheath material
- Installation method
- Application environment
- Required standard
- Total length or quantity
- Delivery destination
- Required technical documents
Example of a Clear Copper Cable Inquiry
We are looking for copper conductor cable for an industrial power distribution project.
Voltage: 8.7/15kV
Conductor: Copper
Core: Three-core
Size: 3x120mm²
Insulation: XLPE
Armor: Steel wire armored
Outer sheath: PVC
Installation: Underground cable trench
Quantity: 5,000 meters
Standard: IEC or equivalent
Destination: Middle East
Please provide quotation, technical datasheet and delivery time.
This type of inquiry helps the supplier understand the technical requirements and prepare a more accurate cable recommendation.
FAQ About Copper Conductor Cable
What is copper conductor cable used for?
Copper conductor cable is used for industrial power distribution, electrical equipment connection, substations, buildings, infrastructure systems, renewable energy projects and utility applications.
Is copper conductor cable better than aluminum conductor cable?
Copper conductor cable offers higher conductivity and compact size, while aluminum conductor cable is lighter and may be more cost-effective for some large-scale projects. The better choice depends on project requirements.
Can copper conductor cable be armored?
Yes. Copper conductor cable can be designed with steel tape armor or steel wire armor when mechanical protection is required for underground, direct burial or industrial installation.
Should I choose XLPE or PVC insulation?
XLPE insulation is commonly used for medium voltage and demanding power systems, while PVC insulation is commonly used for low voltage and general electrical applications.
What information should I provide for quotation?
Buyers should provide voltage rating, copper conductor size, number of cores, insulation, armor, sheath, installation environment, standard, quantity and delivery destination.
Why Choose JinChuan Cable for Copper Conductor Cable?
JinChuan Cable supplies copper conductor cables, flexible copper stranded conductors, XLPE insulated power cables, PVC insulated power cables and customized cable solutions for industrial, infrastructure, energy, railway, construction and utility projects.
For project buyers, JinChuan Cable can support specification review, conductor selection, cable structure recommendation, customization communication and quotation preparation. Buyers can submit drawings, technical specifications or installation details to receive suitable cable recommendations.
If you need copper conductor cable for industrial applications, you can explore JinChuan Cable products, review flexible copper stranded conductor or request a cable quotation based on your project requirements.
Conclusion
Copper conductor cable is a reliable choice for industrial power distribution, electrical equipment connection, substations and infrastructure projects. Its high conductivity, compact size and stable performance make it suitable for demanding electrical systems.
To choose the right copper conductor cable, buyers should confirm voltage rating, conductor size, core structure, insulation material, armor, sheath, installation environment and required standards. JinChuan Cable supports copper conductor cable and customized power cable solutions for global industrial project buyers.
