1、Standard
The product is manufactured according to the standard of 《GB/T 12706 or IEC、BS、DIN and ASTM 》upon request.
2、Applications
This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0kV with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
The flame-retardant PVC insulated cables for the occasion with flame retardant requirements.
Fire-resistant PVC insulated cables for underground railway, underground shopping malls, shopping malls, high-rise buildings and densely populated, ventilation constrained occasions.
3、Technique features
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.
4、Operating characteristics
1. Rated power-frequency voltage U0/U:0.6/1kV。
2. Max. admissible operating temperature of the conductor:70℃.
3. Max. short-circuit temperature of the conductor shall not excused:(5s maximum duration).
Cross-section of conductor ≤300mm2 – 160℃;
Cross-section of conductor >300mm2 – 140℃
4. During the cable laying, the ambient temperature must be above 0℃.
5. The bend radius:
The bending radius should not less than 10 times of cable diameter.
The minimum bending diameter must be above the following standard:
6. Laying method:
There is no limit of head drop during the cable laying.
The cable may be laid in indoor, outdoor, air and soil. The cable may be immersed in water locally.
The cable may be laid in tunnel, pipe, trench, conduit and on cable bridge. The armored cable can be laid underground, and the wire-armored cable can be laid vertically.
The single core cable mustn't be laid in the magnetic metal pipes.
The environment of cable laying shall be in good heat dissipation condition.
7. The maximum allowed haul-off force and lateral pressure of cable.
The calculating method of the maximum allowed haul-off force:
——Copper conductor:F=70×S(N/mm2)。
——Aluminum conductor:F=40×S(N/mm2)。
The calculating method of the maximum allowed lateral pressure:
P=F÷R(N/m),The maximum allowed lateral pressure ≤3000N/m.
In the formula:F-lateral pressure,N;
S-conductor section,mm2;
P-lateral pressure,N/m;
R-Bend radius,m.
8. The requirements on transportation and storage.
The cable reels shall not be delivered and stored in flat state
It is strictly forbidden to push the cable reel from the high level in order to prevent the cable from damages.
If the cable should be used section ally, the head of the cable must be sealed in order to prevent water intake.
5、Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of U0/U(Um)kV . Where:
U0-The rated power-frequency voltage between conductors and earth metallic screen, for which the cable designed;
U - The rated power-frequency voltage between conductors, for which the cable designed;
Um- The maximum value of the “highest system voltage” for which the equipment may be operated.
Rated voltage of cable to be used in three-phase systems are listed below:
System category A──This category comprises those systems in which any phase conductor that comes in contact with earth or an earth conductor. is disconnected from the system within 1 min.
System category B ──This category comprises those system which under fault conditions, are operated are operated for a short time with one phase earthed. This period should not exceed 1h. For a longer period, not exceeding 8h on any occasion can be tolerated. The total duration of earth faults in any year should not exceed 125h.
System category C──This category comprises all systems which do not fall into A and B.

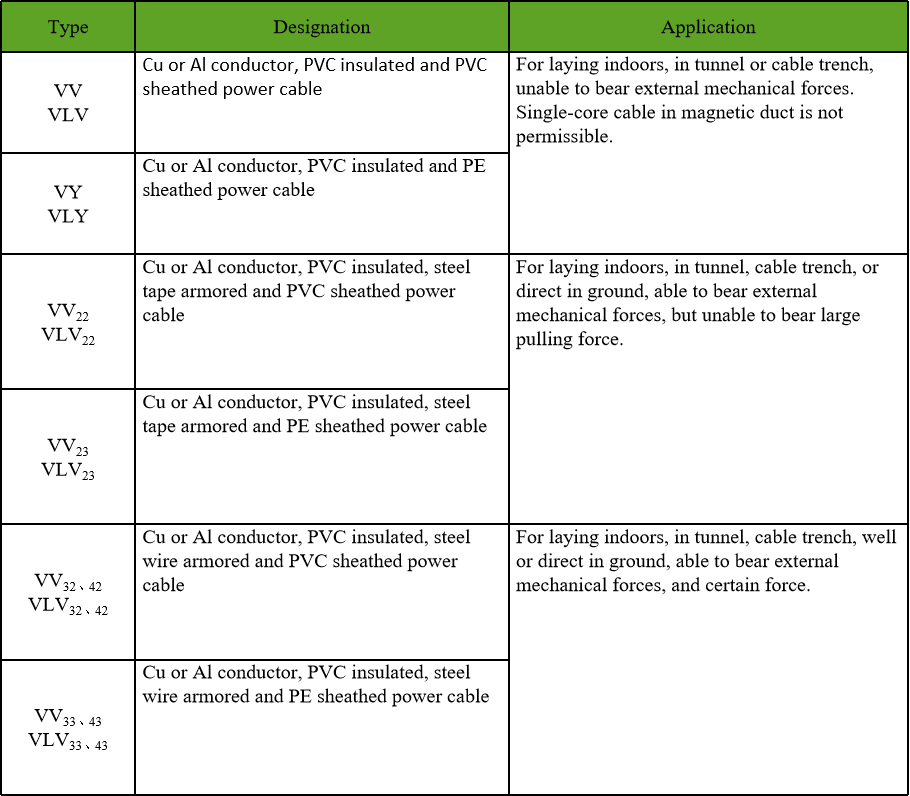

6、Type of cable

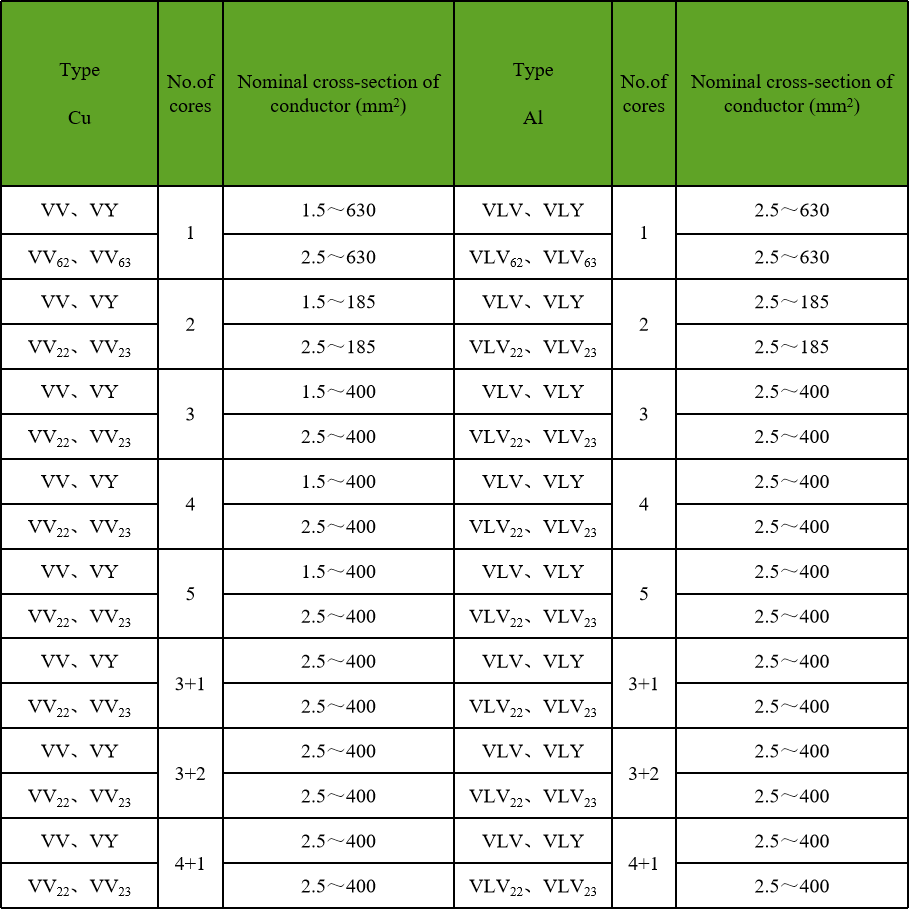

7、Production range of cable
Note:The armored single-core cables are used for D.C. system only, as for A.C. system, the magnetic isolation should be applied on the non-magnetically armored layer or non-magnetically material should be used.
